together and running

Here it is, in almost-ready condition...

Still need to come up with a proper water/rad catch can -- this one overflows into...? The ground.  Have a supermoto-style race catch can on the way.

I was able to use the stock gauges, mounted via aluminum brackets to the front fairing mask.  Very light and puts minimal stress on the fairing.  Miscalculated on the fairing a bit -- is eventually going to sit up higher, right now one of the brackets fouls on the front brakeline...

Chin fairing needed for full-on race certification.  I have an OEM one that I am currently modifying to make capable to retain oil.  Will take awhile -- besides the proper bellypan brackets are on backorder...  Even took it for a quick spin around the block.  Seems to run OK, with some jetting work needed...

On yer feet!

Finally, the bearings, fork seals, and minutae of other parts were at the same place at the same time for once, and the bike is now on its "feet"...

Ok -- to make it "official".  Stock front wheel, bored hub to accept 636 front bearings, seals, and internal spacer; front 636 axle; 636 2003-04 triple clamps; 05-06 forks (also from a 636).  This setup allows the use of the stock front rotors as well (320mm), which again saves a bit of dosh.  Clip ons are from woodcraft.

Front radial master cylinder -- from a zx10, I think.  Brake lines are the stock rubber jobbies, and will have to do for now.  Still trying to fully bleed the system.  In need of some new brake pads!

At the back, the Penske rear shock -- a great buy on ebay -- essentially half price, and complete -- all the spacers and mounting doohickies were included.  Remote resevior is located on the other side of the bike.

Detail shot -- adjustable preload (of course), with compression and rebound as well.  Need to set up the sag and go from there.  Front bellypan has arrived from the UK -- needs proper ER6N mounts (on backorder, of course) which won't arrive until the middle of August.  Currently am modifying the bellypan to retain oil, and not just be an asthetic exercize.  Note in this pic that the brake reseviour for the rear has been removed -- I actually needed a lenght of hose for the front!

Bodywork remaining (tank, front fender, and KTM mask) is currently curing after a coat of clear.  Actually have a Superduke (KTM) front fairing coming in as well, as it is a bit larger and will provide more of a windbreak for me 'ead.

Tanks for the memories

More painting work as the hard parts make their way to me.  The fuel tank was once a nice metallic black, now in "team colors"...

Again, not bad for a backyard paint job.  Next is to let it fully cure, lightly go over it with a scuff pad, and then hit it with the clearcoat.

Fender will be done at the same time...

Dad wearing it as a hat... apparently this is how he smuggled it over the border... (don't tell the queen!)...

And how it looks now, with a light coat of primer on it.  Note that when you are crammed for space, anything and everything can become a table to have painted parts dry.  A number of smaller ones hang from the rafters on coathangers, making the garage look like some sort of psychedelic abbatoir...

Crash bungs came in -- proper stuff, the "official" Kawasaki parts.  Normally costing $180, I got them for $50, still in the original package.  They were originally intended to work with stock, fully faired bodywork -- as such, they had nice aluminum spacers that set the pucks 5-6" out from where there are here -- looked silly.  So I removed the spacers and bolted the pucks directly to the mounts -- main role is to protect the radiators, which these will.  However, as you can see, the side skirts no longer fit... damn, damn, dammit!  Will have to think on this for awhile -- perhaps I can move the pucks lower on the mounts?

It took a second trip, but the wheel has been machined to suit the larger 600 bearnings for the 25mm axle.  The new bearings, seals, and spacers are already installed, and the original bearing is sitting on top of the spacer -- you can see the amount of material that needed to be removed.

Perhaps this pic is clearer -- maybe, a bit of aluminum anyway.  That being said, if this works (and it should), I prefer this route to buying a new 600 wheel.  The bearings, spacer, seals, and maching did set me back $150 -- but it's hard to find a straight front 600 wheel for that price, and plus I'd need to get it shipped to me as well.  Futher, this wheel matches the rear, and it is surprisingly light for the price of the bike.  Soon as I get the forks back together, I'll fit everything up.  Cross your fingers!

Parts and painting

Parcel lady came by early this morning -- left this.  From the states, but for some reason, no duty charged.  Not that I'm complaining, mind... BMC apparently has a decent pedigree -- making air filters for F1 cars and LeMans racers.  Should work fine on a 65hp commuter bike!

I also realized that the forks I got, while straight, had a badly leaking seal... which means new seals (on order) and a decision to purchase a proper fork oil seal driver.  Both the 'mono and this bike use 41mm forks (the inner tube) so likely a decent investment, considering I can now do the work myself.  As well, this is a pretty common size, so good to have in the toolkit if I am doing work for other riders.

Rather than copy the Gulf Oil paint scheme (couldn't find the proper shade of Orange anyway) I've decided to maintain "team colours" and go with the Key Lime/Medium Blue theme from the 'mono... besides the paint is available from Canadian Tire for under 6 bucks a can, and reacts well with the Clearcoat I use.

Particularly proud of the tail section -- this is the former R1 piece Dad and I worked to fit on the shortened subframe.  Still need to cut and apply some seat foam, and put on the numbers (see below), but I think it looks pretty damn good.  Tank will follow suit.

Front 3/4 view.  Still a ways to go yet.  At least the wheelbearings have come in, and the front wheel is at Atom Jet for machining.  Hopefully the bike will be on it's feet by next week.  Not sure if I'll make the August round, but Sept. for sure.

Just in case anyone didn't know who was riding the lime green, loud, naked bike...  The final (hopefully) major purchase will be a power commander.  It transformed the RC51, just with a posted map and not a proper tune, so I know the potential of these things.  Considering the homebrew exhaust and some other tweaks, a proper tune will be in order.  I may have found a dyno guy in Winnipeg, and plan to get the bike properly mapped in the fall.

Subframe Modification

Saw a souped up ex650r at mid-america.  Short of a $1200 arata exhaust system, some of the mods on that bike were more pedestrian -- specifically, a shortened rear subframe and a different tail section.  EX650R tails go for around $200 'murican, for the bolt on and forget it option.  You'll notice I bought an R1 tail for around $50 USD.  The task, once in my hands, was getting it to fit.  Luckily mom and pop were visiting -- and while mom and Kate were doing things like whipping up 3-course meals, Dad and I were in the garage, bending some aluminum and cutting some steel.

I also had to reposition the ECU, and find a spot for a ground strap.  Luckily everything just tucked in a bit closer to the center of the bike.  The thin alloy acts as an undertail, protects the ECU, and also has a hole for a pickup point for the rear of the tail (currently being painted by meself).  The one strap holds the ECU in its stock rubber bracket, and the rearward one is to support the tail section.

Top view -- the rubber bumpers are actually some I kept from another project -- there are supposed to hold a fuel tank in place, but are sturdy enough to work in this capacity as well.  I also reninforced the underside of the R1 seat with 2 layers of cloth to strengthen it up a bit.  Will post some pics of the tail when the paintwork is finished.

As for everything else, have been waiting for nearly 3 weeks from some zx6r front wheelbearings to come in... hopefully Monday...

rearsets and forks

Mailman came by the house twice today!

Valter Moto rearsets.  About the same price as Woodcraft, no duty, and reasonable shipping from the UK.  Had to readjust the pipe slightly, but it will still work.

Other side.  Had to remove the sprocket cover to get the shifter to orient itself where I want it to.  Could reverse the shifting (GP shift), but all my other bikes have the standard street pattern.

05-06 636 forks.  Slid right into the 03-04 triples, as advertised.  Brake calipers line up properly, but no bolts yet to install them.  Next step is to get the 650 front wheel machined to accept the zx6r front bearings, seals, internal spacer, and axle.  It should all line up then...

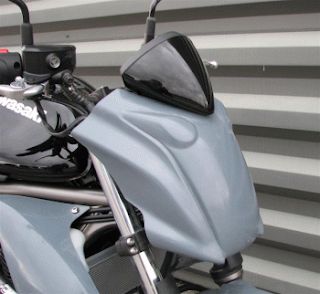

Starting to piece the bike together, with new parts, used parts, and modified parts.  First, I am going with a simple bikini-style fairing.  Twinshack wants 72 pounds for this thing, which is intended to match the shape of the ER6N headlight...

Instead, I found a KTM Duke II upper fairing, crashed, on ebay for a lot cheaper (see sidebar for price information).  With a bit of work I've filled in the headlight holes and started to repaint it.  Black down the middle, and I'm thinking of doing the trim in Gulf Oil blue (got some stickers to use...)

This is it hanging in the garage.  I think I'll even be able to use the stock gauges, and mount them directly to this fairing, using some aluminum angle brackets.  Will have to make some room for numbers, of course, which I am getting from Ratmally in the UK -- they supplied the supermono numbers...

I've begun the front end swap.  Those who are Ninja 650 riders and are considering a new front end, you might want to pay attention, and either do what I do, or ignore me completely.  I think I have the proper information on doing this as simply as possible.  First, I bought a 03-04 636 front end.  This did, as advertised, bolt right in to the frame.  Mine already had steering stops removed... will have to come up with another solution for my bike.  I understand that the stock steering stops do need to be modified to use in this frame.

This is the 636 upper.  The stem is long enough, because I understand if you go for the 04-05 front triples, things are a tad short.  The ignition key tumbler is in place, and works properly.  Not sure about the steering lock -- don't plan to use it anyway!  Waiting on the forks -- got 05-06 forks, which are allegedly much better than the earlier models.  As well, my radial calipers came in.  Filthy as all heck, but I spent the day cleaning them up.  Horrible, dirty job, but ultimately satisfying in the end.

I also checked the airbox.  Filter is original, so needs to be replaced.  As well, I also removed the "intake snorkels"... jury is out on this modification, but the following videos show there is some advantage to performing this tweak...
